THERMAL OIL HEATING

FTN thermal oil heaters for stable, low-pressure process heat.

FTN delivers indirect process heating with consistent temperature profiles, high operational efficiency, and safety-focused design for demanding industrial applications.

Talk to an Engineer Request a Quote Download Datasheet

High temperature process heat at very low pressure.

FTN systems operate in indirect closed-loop mode, allowing high operating temperatures with very low system pressure. Depending on the selected fluid and engineering scope, applications can reach up to 320 C with organic oils and up to 427 C with selected synthetic fluids.

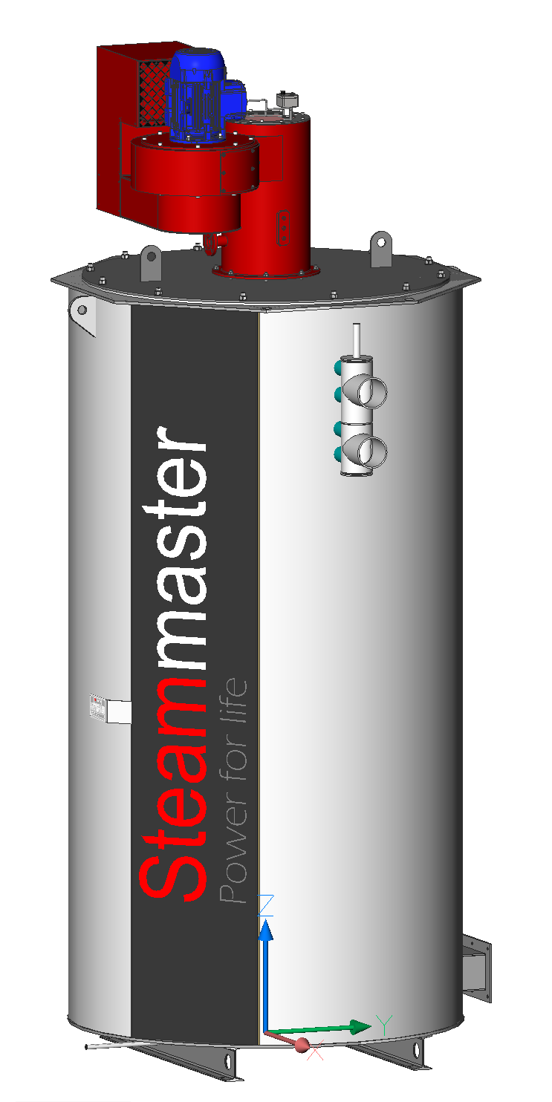

FTN thermal oil heater package in industrial process heating layout

Process Heat Low Pressure

Designed for thermal stability and operating predictability.

FTN architecture focuses on balanced temperature profile, efficient heat transfer, and reduced thermal stress in continuous industrial duty.

Energy performance focus to reduce fuel cost drivers and support CO2 reduction pathways.
Optimized internal flow to minimize dead zones and reduce risk of local oil overheating.
Robust coil and burner interface design to control thermal stress and support long service life.

Horizontal or vertical to fit your layout.

FTN-H (horizontal): maintenance-friendly access for selected layouts.
FTN-V (vertical): optimized footprint for constrained industrial spaces.
Optional combustion air preheater available by project scope.

Capacity and fuel flexibility.

Combustion capacity	160 kW to 16,000 kW
Electric option	Up to 1,000 kW (where applicable)
Thermal medium	Mineral and synthetic thermal oils
Fuel options	Natural gas, LPG, heating oil, biomass and by-products, or electricity

Complete package for faster deployment.

FTN can be supplied with an integrated accessory package to reduce site variability and simplify execution governance.

Primary circulation pump set
Expansion vessel and collection tank
Fill and drain pump package
Line deaerator tank
Burner and Steammaster control panel

Safety interlocks and thermal governance.

Control logic and protections can include low flow, high oil temperature, low oil level, and high flue gas temperature stop conditions, according to project engineering scope.

View Lifecycle Services

Why choose FTN

High-temperature process heat at low operating pressure
Balanced thermal profile for continuous duty stability
Broad power range from 160 kW to 16,000 kW
Horizontal and vertical configurations by layout strategy
Integrated package options for faster site execution

Align your process heat strategy with engineering support.

Share your thermal load, temperature target, and utility constraints to receive a structured technical-commercial recommendation for FTN.

Talk to an Engineer Request a Quote

Installation and integration views

Reference views for electrical connection points, process interfaces, and maintenance access planning.

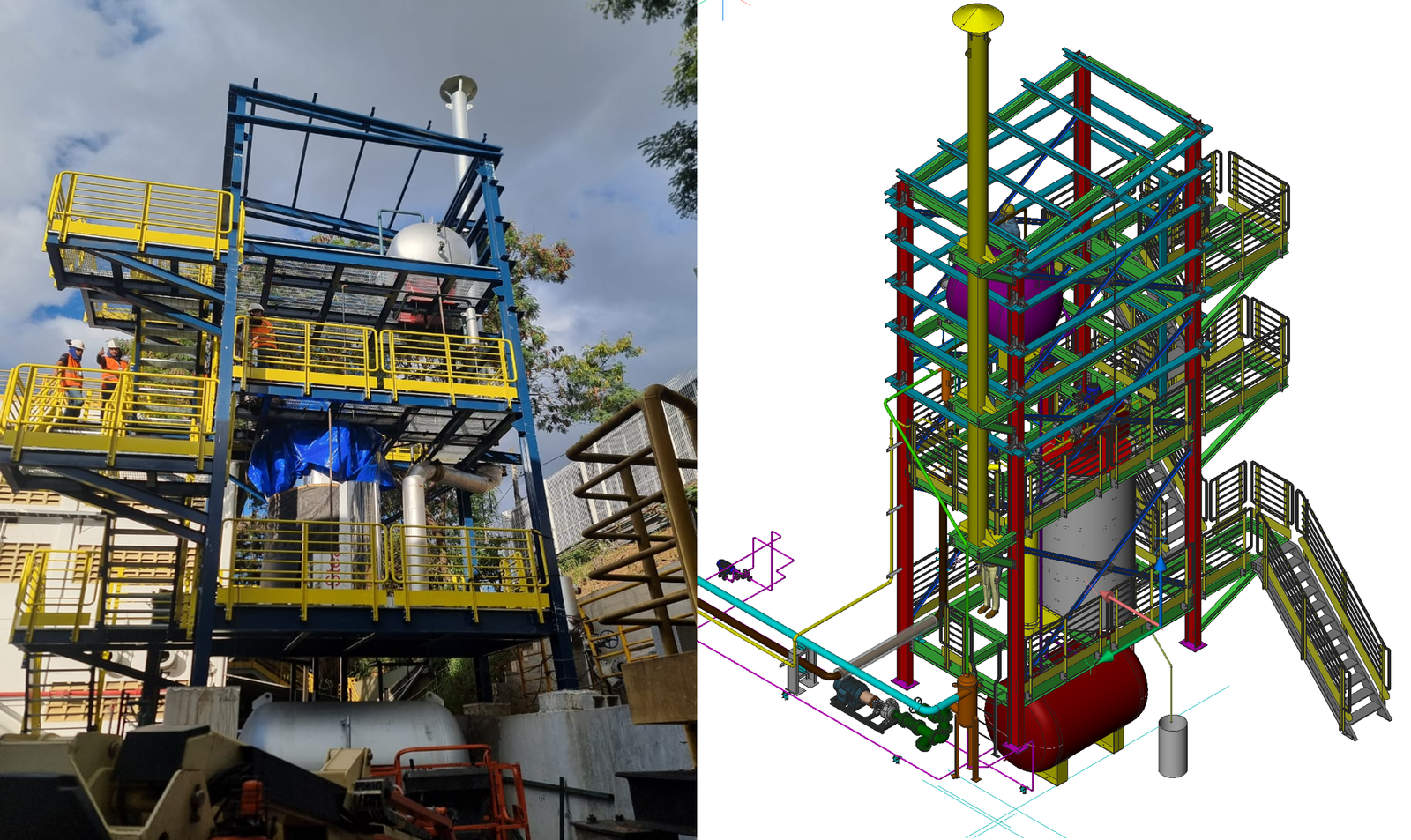

FTN heater assembly and interface detail — Equipment overview
