WATER-TUBE BOILERS

JPO water-tube boilers for superheated steam duty - compact, export-ready, and engineered for high pressure.

Designed for 5-140 t/h, up to 45 bar and up to 450°C. The JPO uses a single-drum “D-type” circulation concept with positive circulation, welded waterwall construction, and configurable superheaters to meet petrochemical and process requirements.

Request a Quote Talk to an Engineer

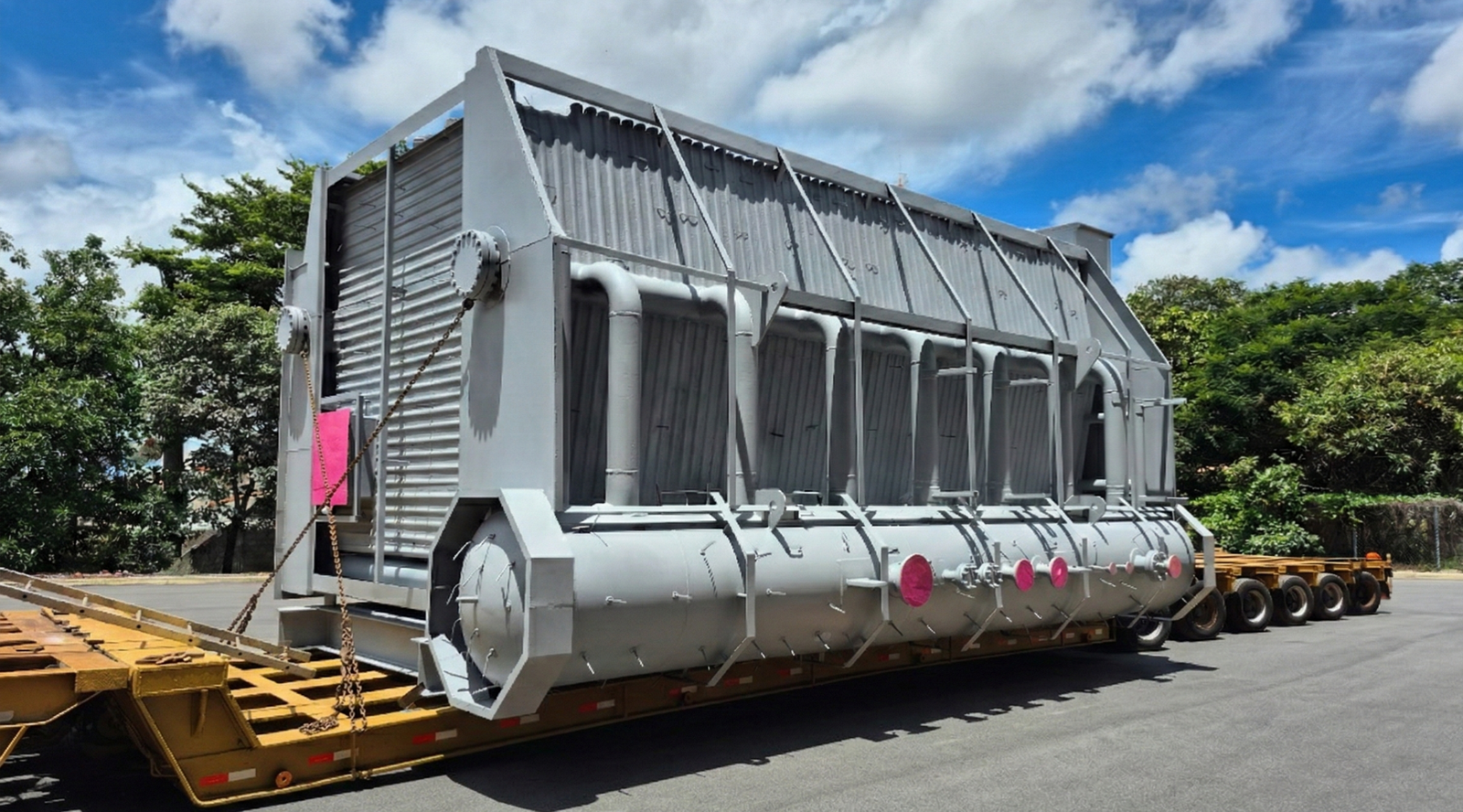

JPO High Pressure Platform main reference image

JPO High Pressure Platform thumbnail reference 1

JPO High Pressure Platform thumbnail reference 2

JPO High Pressure Platform thumbnail reference 3

JPO High Pressure Platform thumbnail reference 4

Platform Project Context

Compact boiler architecture for transport and fast installation

Reference views to support EPC qualification: footprint, access for maintenance, drum internals, waterwall construction, and integration interfaces.

Request a Quote Download datasheet

Single external drum with engineered internals for dry steam delivery
Waterwall furnace and comb-style tube bank for stable circulation
Interfaces for burners, economizers, controls, and boilerhouse auxiliaries

Loading 3D model...

Orbit, zoom and inspect the JPO package from the main engineering, access, and plot-plan angles.

Interactive 3D

Interactive JPO package review

Use this model to review the water-tube arrangement, platform access, and plot-space needs before detailed engineering and EPC discussion.

Use the left mouse button to rotate and the right button to move the model, then adjust the zoom.
Need a broader immersive review? Open the full 3D viewer. Open 3D Viewer

Discuss this configuration Open JPO files

Key specifications

Steam capacity: 5-140 t/h
Design pressure: up to 45 bar
Superheated steam temperature: up to 450°C (configurable control)
Compact design for economical transport
Positive circulation concept with engineered risers/downcomers
Welded waterwall construction (reduced refractory dependence)

Engineering highlights

Drum internals manufactured by Steammaster for steam/water separation matched to the duty
Configurable superheater (single or dual) with temperature control up to 450°C
Low steam velocity distribution for superheated applications
Designed for continuous operation with maintainability and inspection access in mind

Burners, controls, and integration

Low-NOx burners sized 5-44 MW/h, tailored to fuel strategy (gas and liquid options)
Integrated PLC-based boiler and burner management with 1/2/3-element control strategies
SCADA data collection and faceplate control options
Redundant safety applications (SIL 1 to SIL 3, scope dependent)

Optional packages

Economizers and air preheaters to increase overall efficiency
Continuous Emissions Monitoring System (CEMS) integration when required
Deaerators, pumps, fuel skids, blowdown heat recovery, and boilerhouse auxiliaries
Export documentation pack aligned to project scope

Where it fits

Petrochemical and refinery steam duty requiring high pressure and superheated steam
EPC/EPCM projects with tight plot-plan and predictable installation windows
Process plants demanding stable operation, documentation discipline, and service readiness

Proof

Project references are available under NDA to support EPC qualification, including layout, performance envelope, documentation list, and commissioning approach.

Compliance and service

ASME-ready manufacturing workflow with inspection and traceability records, plus lifecycle support for commissioning, tuning, spares, and modernization scope.

Reference views

Field and engineering views for qualification: equipment arrangement, mechanical details, installation context, and maintenance access.

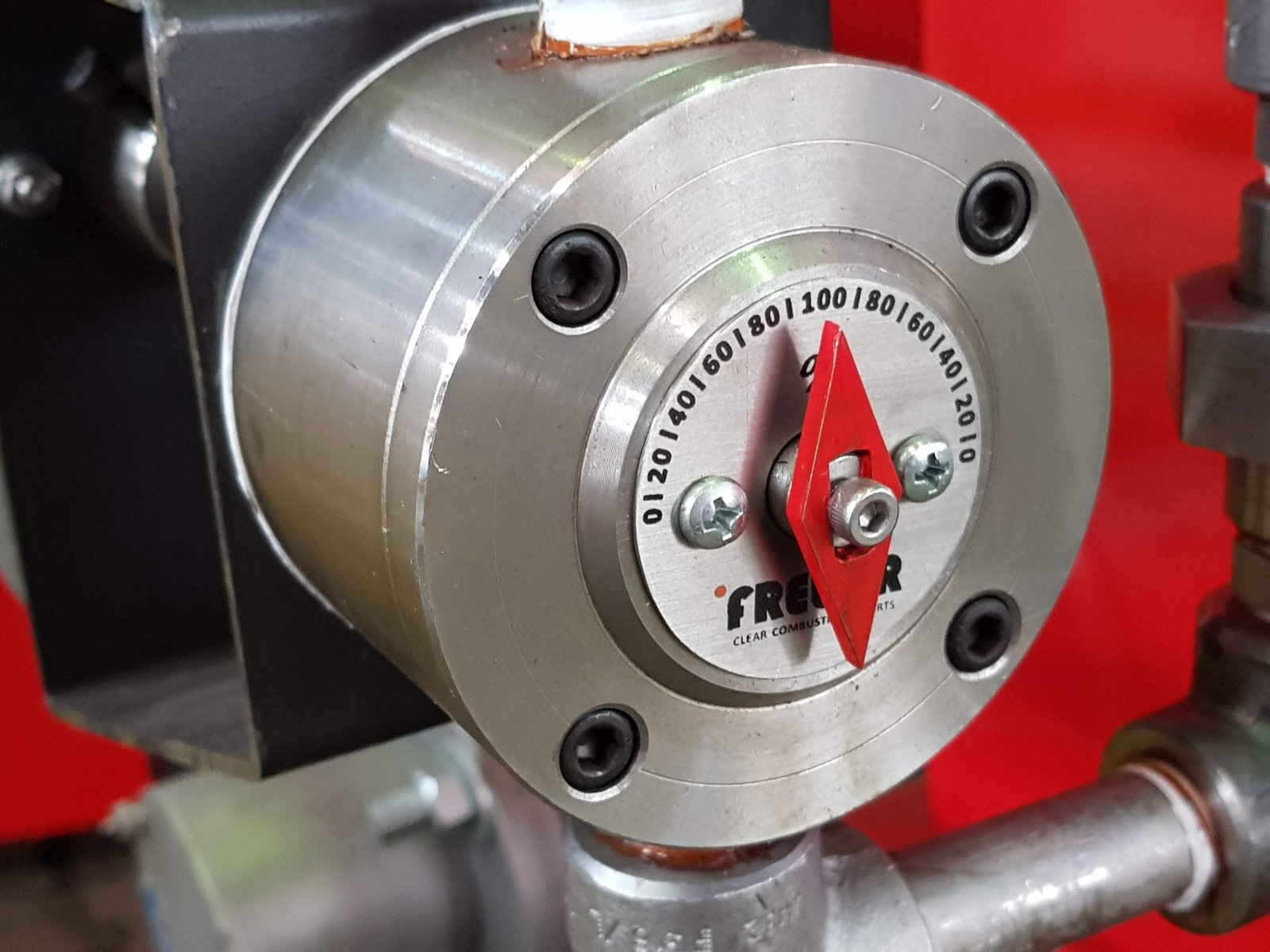

Platform Image Views - Equipment overview — Equipment overview

Platform Image Views - Engineering detail — Engineering detail

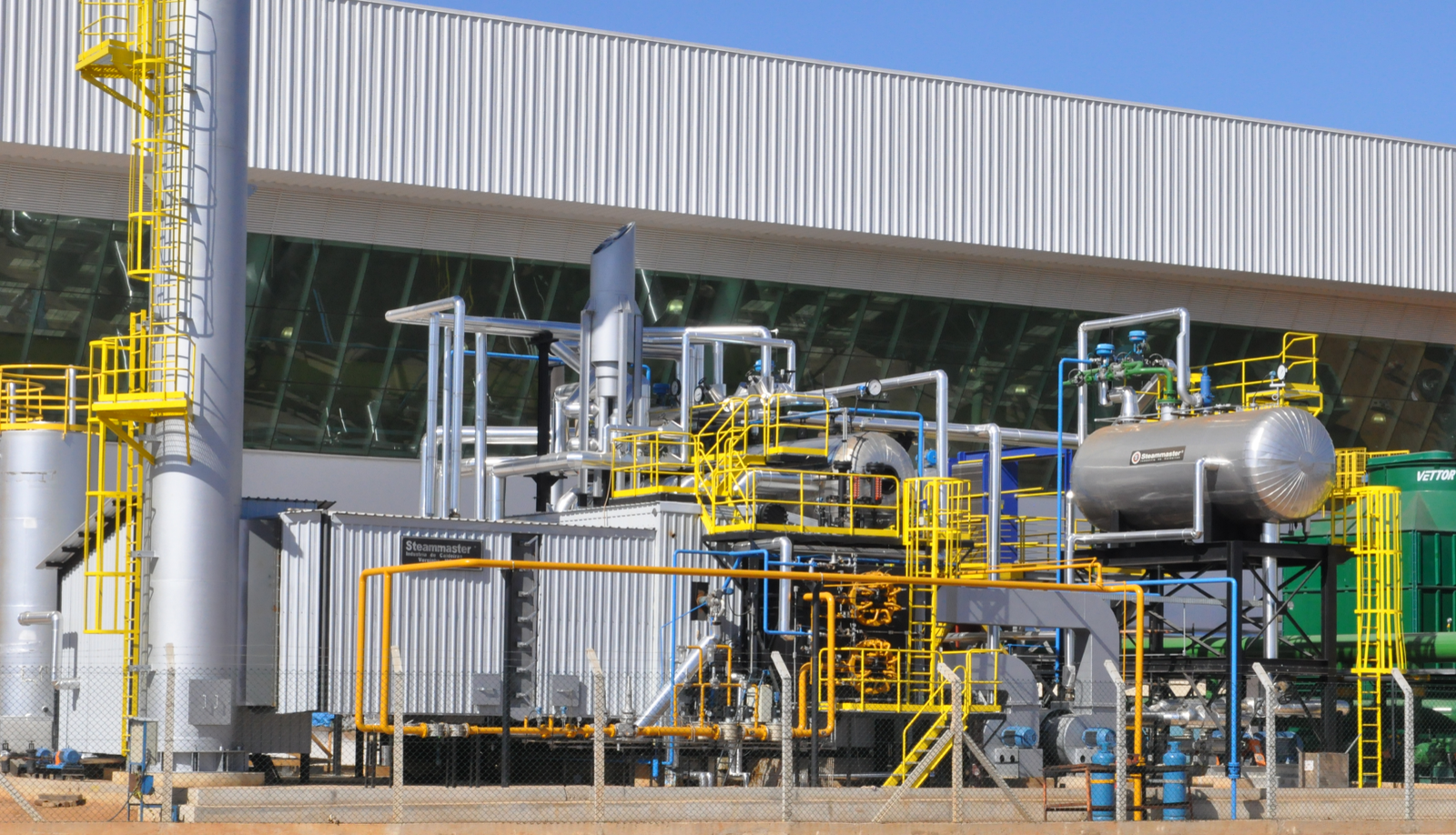

Platform Image Views - Field installation — Field installation
